H900uf

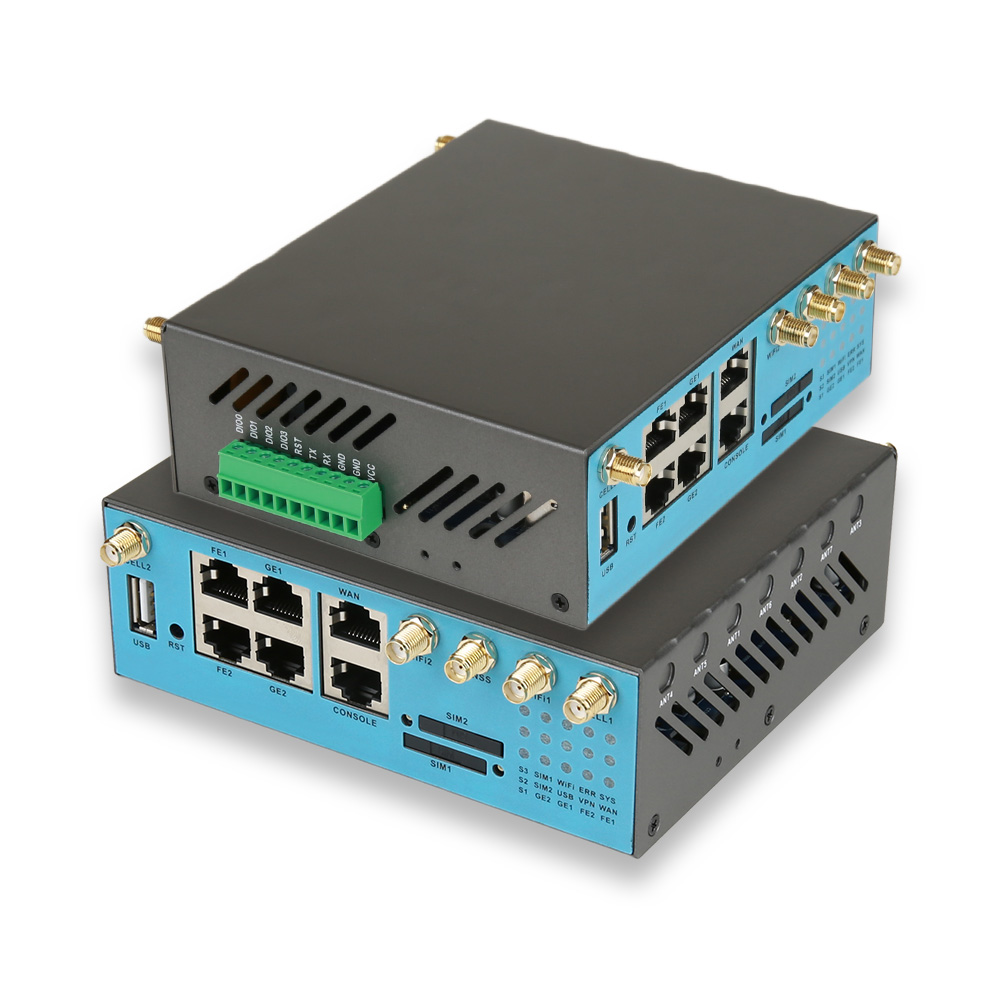

H900uf IoT 5G Router

E-Lins H900uf Series Router is the cute size but high performance of cellular 5G router designed for critical infrastructure, M2M, IoT and industrial applications.

• WAN Gigabit RJ45 * 1 + LAN Gigabit RJ45 * 1 (or LAN RJ45 * 2) + DI/DO * 4 + Serial;
• Industrial, robust, secure and high reliable;
• built-in 5g modem with sim card slot;
• High data speed via 5G 4G 3G 2G networks MIMO;
• Secure data transactions with advanced VPN options;
• Advanced dynamic routing, security and firewall features;
• Centralized manageable;
• Beidou GPS tracking optional;
• 802.11b/g/n or 802.11ac WiFi;
• Wide range power input, tri power input;

Download Links

H900uf-5G-Router-Datasheet

E-Lins Industrial Router & Modem Catalog

More Description for Mini Internet Modem Router 5G LTE

• Multi-carrier 2G/3G/4G LTE/5G support with two SIM card slot;
• Cellular/WAN RJ45/WiFi client failover and Load Balance ;
• Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP;
• Dual-band or Tri-band, dual concurrent WiFi (802.11 a/b/g/n/ac, 2.4Ghz + 5Ghz), MU-MIMO WAVE2; Built-in transient and reverse polarity voltage protection, over-current and over-voltage protection;
• Ruggedized to ensure always-on connectivity; Create real-time alerts to monitor uptime;
• Offer secure, guest WiFi to passengers; Advanced security, VPN, and stateful firewall to protect sensitive data;
• Robust Metal Case is ruggedized for vibration, shock; Desktop, Wall-mount and Din-rail mount of installation;
• External antenna connectors for high gain antennas replacement;

More Highlights

>> E-Lins has a better industrial design

>> Industrial Design: Robust and Working in Wide Range Temperature

H900uf 5G router with Ethernet is industrial designed, excellent function to ensure 7x24h running in stability and reliability;

Wide range power input with dual types of input supported; Alloy-metal case, IP30 protection standard;

Quality industrial grade casing provides robust and reliable 5G router for installation in many different environments and operating temperature of -35 Celcius to +75 Celcius.

>> With Multi-Powerful-Features

>> Built-in Industrial Modem Module and Dual SIM Card Slot

The H900uf can built-in industrial class radio modem module to provide robust and reliable cellular network communications. With SIM Card Slot, users can insert two SIM cards to dialup 3G/4G/5G networks directly.

>> Dual Band or Tri band Concurrent WiFi with Wave2 and MU-MIMO

The H900uf SIM card 5G router provides option 2.4Ghz + 5GHz dual band or tri-band WiFi with concurrent data transmission to achieve high powerful WiFi performance. Also it supports high gain WiFi module including 802.11AC Wave2 and MU-MIMO technology for installation and replacement to meet different WiFi requirement. With multi radios, H900uf gets 2~3 times number of served clients comparing to normal single radio. With multi data stream, H900uf gets 3~4 times data bandwidth comparing to normal single data stream. With MU-MIMO technology, H900uf gets 2~3 times data bandwidth and and number of served clients comparing to normal single radio single data stream. H900uf SIM card 5G router supports high gain WiFi replacement to meet different applications.

>> Rich Interface

>> VPN Safety and Securiy

Offer more VPN safety application schemes, data transmission reach to financial grade standard. E-Lins wireless routers support APN/VPDN private networks, also including various VPN access such as IPSEC, PPTP, L2TP, GRE,OPENVPN, DMVPN, etc. including the function of VPN client and server. Add one more channel of encryption communication under the base of special network can fully guarantee the safety and accuracy of data of dealing and management.

>> Dual Power Input

The H900uf Dual SIM 5G Router supports wide voltage range of 5V to 40V DC (option up to 60V DC) and has two power inputs so if the primary power fails then the modem will automatically use the second power supply without link downtime.

>> Three Types of Installation (Din-rail, wall-mount, Desktop)

>> Beidou / GPS is supported

>>Multi-management

Supporting Web GUI, Telnet SSH Command, SMS, TR-069, SNMP, and NMS (E-Lins Network Management System), users can manage and control the H900uf 5G router easily and flexibly. All E-Lins communication terminals can be connected to the E-Lins remote managing and controlling platform (NMS), which brings the generous devices scattering in different areas to carry out concentrate monitor, configuration, updated, diagnose, maintenance, manage and control. Highly reduce the maintenance costing in the operator, integrator, devise supplier etc, increase the managing efficiency.
